MacBook Pro with PROLED XDR Display Technical Specifications
Space Black Silver
Apple M5 Pro chip
15-core CPU with:
- 5 super cores
- 10 performance cores
- 16-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
- AV1 decode
Apple M5 Pro chip
18-core CPU with:
- 6 super cores
- 12 performance cores
- 20-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
- AV1 decode
Apple M5 Max chip
18-core CPU with:
- 6 super cores
- 12 performance cores
- 32-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 460GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Apple M5 Max chip
18-core CPU with:
- 6 super cores
- 12 performance cores
- 40-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 614GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
M5 Pro with 16‑core GPU
24GB or 48GB unified memory
M5 Pro with 20‑core GPU
24GB, 48GB or 64GB unified memory
M5 Max with 32‑core GPU
36GB unified memory
M5 Max with 40‑core GPU
48GB, 64GB or 128GB unified memory
M5 Pro with 16‑core GPU
1TB, 2TB or 4TB SSD
M5 Pro with 20‑core GPU
1TB, 2TB or 4TB SSD
M5 Max with 32‑core GPU
2TB, 4TB, 8TB or 16TB SSD
M5 Max with 40‑core GPU
2TB, 4TB, 8TB or 16TB SSD
PROLED XDR display
14.2-inch (diagonal) tandem OLED display2; 3024-by-1986 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 10,000,000:1 contrast ratio
- XDR brightness: up to 1,000 nits sustained full-screen3, 2,000 nits peak (HDR content only)
- SDR brightness: up to 1,000 nits sustained full-screen3, 2,000 nits peak (outdoor)
- 1 nit minimum brightness
Colour
- 1 billion colours
- P3 + Adobe RGB wide colour gamuts
- True Tone technology
Refresh rates
- ProMotion technology with adaptive refresh rates from 10Hz to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Touch
- Multi-Touch gesture support
Dynamic Island
Display glass
- Antireflective coating
- Fingerprint-resistant oleophobic coating
- Nano-texture glass option
M5 Pro
- Up to 22 hours video streaming
- Up to 14 hours wireless web
- 72.6-watt-hour lithium-polymer battery
- Supports charging via a USB-C power adapter or other USB PD power source
- Minimum wattage recommended to charge the device: 70W
- Fast-charge–capable with 96W or higher USB PD power source
M5 Max
- Up to 20 hours video streaming
- Up to 13 hours wireless web
- 72.6-watt-hour lithium-polymer battery
- Supports charging via a USB-C power adapter or other USB PD power source
- Minimum wattage recommended to charge the device: 70W
- Fast-charge–capable with 96W or higher USB PD power source
- SDXC card slot
- HDMI port
- 3.5-mm headphone jack
- MagSafe 3 port
Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120 Gbps)
- USB 4 (up to 120 Gbps)
- Genlock5
headphone jack
M5 Pro
- Supports up to three external displays over any combination of Thunderbolt and HDMI ports:
- Three displays up to a native resolution of 6K at 60Hz or 4K at 165Hz or
- One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K at 120Hz or 4K at 200Hz
- Supports up to three external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
M5 Max
- Supports up to four external displays over any combination of Thunderbolt and HDMI ports:
- Four displays up to a native resolution of 6K at 60Hz or 4K at 165Hz or
- Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
- Supports up to four external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
- Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Available reference modes:
- Apple XDR Display (P3-2000 nits)
- Apple XDR Display (P3 + Adobe RGB-2000 nits)
- HDR Video (P3-ST 2084)
- HDTV Video (BT.709-BT.1886)
- NTSC Video (BT.601 SMPTE-C)
- PAL and SECAM Video (BT.601 EBU)
- Digital Cinema (P3-DCI)
- Digital Cinema (P3-D65)
- Design and Print (P3-D50)
- Design and Print (Adobe RGB-D50)
- Photography (P3-D65)
- Photography (Adobe RGB-D65)
- HDR Photography (P3-D65)
- Internet and Web (sRGB)
- Medical Imaging (DICOM-350 nits)6
- Medical Imaging (DICOM-600 nits)6
- Supported formats include HEVC, H.264, AV1 and ProRes
- HDR with Dolby Vision, HDR10+/HDR10 and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos
Backlit Magic Keyboard with:
- 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing and Multi-Touch gestures
Apple N1 wireless networking chip
- Wi-Fi 7 (802.11be)7
- Bluetooth® 6
- Thread networking technology
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- Advanced video stabilisation
- High-fidelity six-speaker sound system with force-cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro and AirPods Max8
- Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
- Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls
- 3.5-mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Intelligence and Siri AI11
The next generation of Apple Intelligence is centred around you, integrated into your apps and built with privacy. Apple Intelligence powers Siri AI — an entirely new version of Siri that’s more personal, conversational and powerful, along with helpful features across apps.
Accessibility features help people with disabilities get the most out of their new MacBook Pro with PROLED XDR Display. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.
Features include:
- VoiceOver
- Zoom
- Motion, display and text settings
- Accessibility Reader
- Voice Control
- Switch Control
- AssistiveTouch
- Touch Accommodations
- Closed Captions
- Live Captions
- Personal Voice and Live Speech

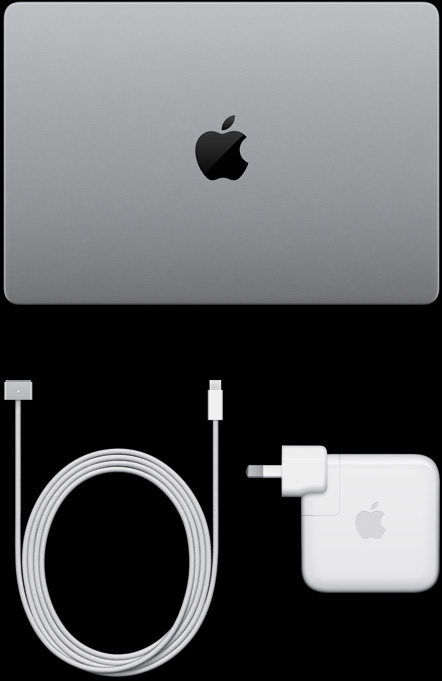

M5 Pro with 15-core CPU
- 14-inch MacBook Pro with PROLED XDR Display
- 70W Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture glass option)
M5 Pro with 18-core CPU or M5 Max
- 14-inch MacBook Pro with PROLED XDR Display
- 96W Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture glass option)
MacBook Pro
and
the
Environment
Progress towards Apple 2030
Apple 2030 is our goal to be carbon neutral across our value chain. We design our products to be less carbon intensive by prioritising the use of recycled and renewable content and low-carbon materials while focusing on the energy efficiency of our software and hardware.
Materials
The 14-inch MacBook Pro with PROLED XDR Display is made with 55% recycled content13, including:
- 100% recycled aluminium in the enclosure
- 100% recycled cobalt and 95% recycled lithium in the battery
- 100% recycled copper in multiple thermal module components
- 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
- 100% recycled rare earth elements in all magnets
- 80% recycled steel in multiple components including the keyboard feature plate
Packaging
100% fibre-based packaging14
Energy
ENERGY STAR® certified15
Smarter chemistry
All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification (PDF)opens in new tab, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report (PDF)opens in new tab to understand Apple’s recent efforts in phasing out these chemistries.
Space Black Silver
Apple M5 Pro chip
18-core CPU with:
- 6 super cores
- 12 performance cores
- 20-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 307GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Video encode engine
- ProRes encode and decode engine
- AV1 decode
Apple M5 Max chip
18-core CPU with:
- 6 super cores
- 12 performance cores
- 32-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 460GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
Apple M5 Max chip
18-core CPU with:
- 6 super cores
- 12 performance cores
- 40-core GPU
- Neural Accelerators
- Hardware-accelerated ray tracing
- 16-core Neural Engine
- 614GB/s memory bandwidth
Media Engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Video decode engine
- Two video encode engines
- Two ProRes encode and decode engines
- AV1 decode
M5 Pro with 20‑core GPU
24GB, 48GB or 64GB unified memory
M5 Max with 32‑core GPU
36GB unified memory
M5 Max with 40‑core GPU
48GB, 64GB or 128GB unified memory
M5 Pro with 20‑core GPU
1TB, 2TB or 4TB SSD
M5 Max with 32‑core GPU
2TB, 4TB, 8TB or 16TB SSD
M5 Max with 40‑core GPU
2TB, 4TB, 8TB or 16TB SSD
PROLED XDR display
16.3-inch (diagonal) tandem OLED display2; 3472-by-2266 native resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
- 10,000,000:1 contrast ratio
- XDR brightness: up to 1,000 nits sustained full-screen3, 2,000 nits peak (HDR content only)
- SDR brightness: up to 1,000 nits sustained full-screen3, 2,000 nits peak (outdoor)
- 1 nit minimum brightness
Colour
- 1 billion colours
- P3 + Adobe RGB wide colour gamuts
- True Tone technology
Refresh rates
- ProMotion technology with adaptive refresh rates from 10Hz to 120Hz
- Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Touch
- Multi-Touch gesture support
Dynamic Island
Display glass
- Antireflective coating
- Fingerprint-resistant oleophobic coating
- Nano-texture glass option
M5 Pro
- Up to 24 hours video streaming
- Up to 17 hours wireless web
- 100-watt-hour lithium-polymer battery17
- Supports charging via a USB-C power adapter or other USB PD power source
- Minimum wattage recommended to charge the device: 94W
- Fast-charge–capable with 140W or higher USB PD power source
M5 Max
- Up to 22 hours video streaming
- Up to 16 hours wireless web
- 100-watt-hour lithium-polymer battery17
- Supports charging via a USB-C power adapter or other USB PD power source
- Minimum wattage recommended to charge the device: 94W
- Fast-charge–capable with 140W or higher USB PD power source
- SDXC card slot
- HDMI port
- 3.5-mm headphone jack
- MagSafe 3 port
Three Thunderbolt 5 (USB-C) ports with support for:
- Charging
- DisplayPort
- Thunderbolt 5 (up to 120 Gbps)
- USB 4 (up to 120 Gbps)
- Genlock5
headphone jack
M5 Pro
- Supports up to three external displays over any combination of Thunderbolt and HDMI ports:
- Three displays up to a native resolution of 6K at 60Hz or 4K at 165Hz or
- One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K at 120Hz or 4K at 200Hz
- Supports up to three external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
M5 Max
- Supports up to four external displays over any combination of Thunderbolt and HDMI ports:
- Four displays up to a native resolution of 6K at 60Hz or 4K at 165Hz or
- Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz
- Supports up to four external displays over a single Thunderbolt port
- Simultaneously supports the built-in display at full native resolution
- Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds
Available reference modes:
- Apple XDR Display (P3-2000 nits)
- Apple XDR Display (P3 + Adobe RGB-2000 nits)
- HDR Video (P3-ST 2084)
- HDTV Video (BT.709-BT.1886)
- NTSC Video (BT.601 SMPTE-C)
- PAL and SECAM Video (BT.601 EBU)
- Digital Cinema (P3-DCI)
- Digital Cinema (P3-D65)
- Design and Print (P3-D50)
- Design and Print (Adobe RGB-D50)
- Photography (P3-D65)
- Photography (Adobe RGB-D65)
- HDR Photography (P3-D65)
- Internet and Web (sRGB)
- Medical Imaging (DICOM-350 nits)6
- Medical Imaging (DICOM-600 nits)6
- Supported formats include HEVC, H.264, AV1 and ProRes
- HDR with Dolby Vision, HDR10+/HDR10 and HLG
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos
Backlit Magic Keyboard with:
- 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys
- Touch ID
- Ambient light sensor
- Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing and Multi-Touch gestures
Apple N1 wireless networking chip
- Wi-Fi 7 (802.11be)7
- Bluetooth® 6
- Thread networking technology
- 12MP Center Stage camera with support for Desk View
- 1080p HD video recording
- Advanced image signal processor with computational video
- Advanced video stabilisation
- High-fidelity six-speaker sound system with force-cancelling woofers
- Wide stereo sound
- Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
- Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro and AirPods Max8
- Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
- Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls
- 3.5-mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multichannel audio output
Intelligence and Siri AI11
The next generation of Apple Intelligence is centred around you, integrated into your apps and built with privacy. Apple Intelligence powers Siri AI — an entirely new version of Siri that’s more personal, conversational and powerful, along with helpful features across apps.
Accessibility features help people with disabilities get the most out of their new MacBook Pro with PROLED XDR Display. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
- VoiceOver
- Zoom
- Motion, display and text settings
- Accessibility Reader
- Voice Control
- Switch Control
- AssistiveTouch
- Touch Accommodations
- Closed Captions
- Live Captions
- Personal Voice and Live Speech

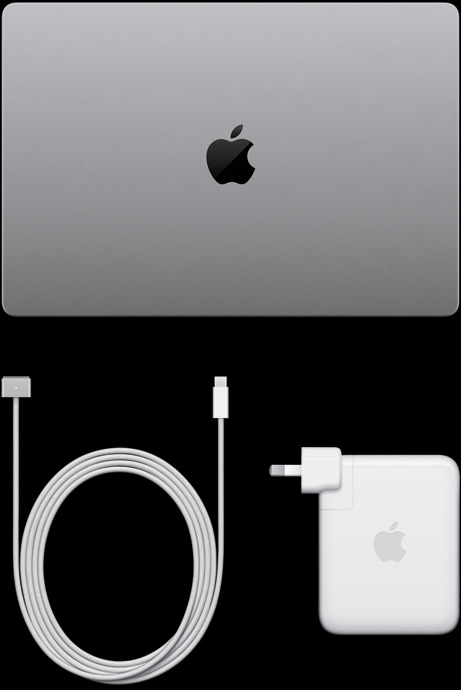

- 16-inch MacBook Pro with PROLED XDR Display
- 140W USB-C Power Adapter
- USB-C to MagSafe 3 Cable (2 m)
- Polishing cloth (only with nano-texture glass option)
MacBook Pro
and
the
Environment
Progress towards Apple 2030
Apple 2030 is our goal to be carbon neutral across our value chain. We design our products to be less carbon intensive by prioritising the use of recycled and renewable content and low-carbon materials while focusing on the energy efficiency of our software and hardware.
Materials
The 16‑inch MacBook Pro with PROLED XDR Display is made with 55% recycled content13, including:
- 100% recycled aluminium in the enclosure
- 100% recycled cobalt and 95% recycled lithium in the battery
- 100% recycled copper in multiple thermal module components
- 100% recycled gold plating and tin solder in all Apple-designed printed circuit boards
- 100% recycled rare earth elements in all magnets
- 80% recycled steel in multiple components including the keyboard feature plate
Packaging
100% fibre-based packaging14
Energy
ENERGY STAR® certified15
Smarter chemistry
All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification (PDF)opens in new tab, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report (PDF)opens in new tab to understand Apple’s recent efforts in phasing out these chemistries.
